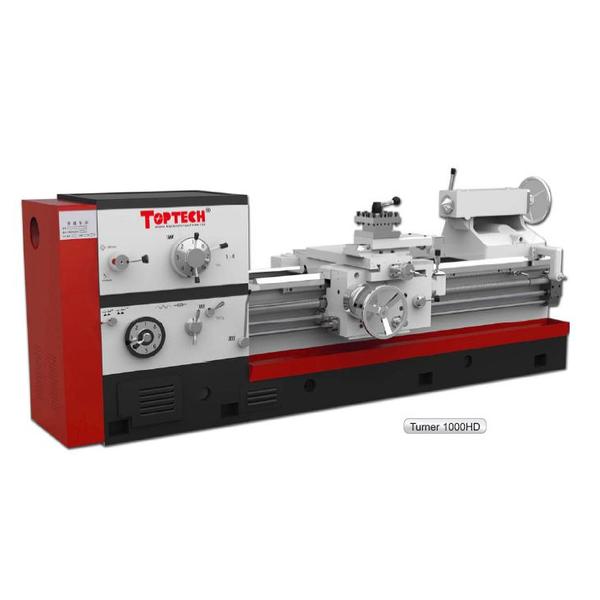

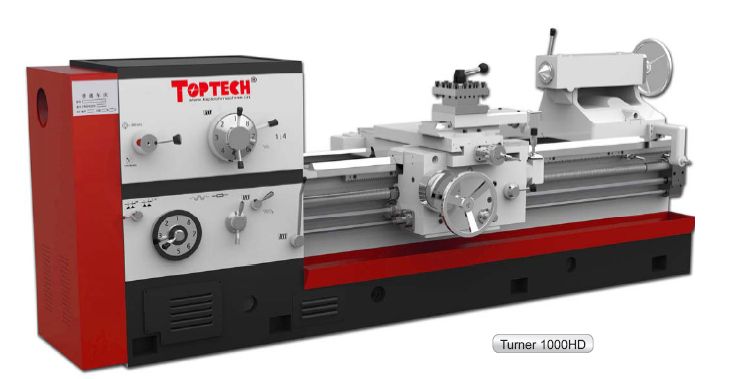

Turner 1000 HD
| Elérhetőség: | Előrendelhető |
| Cikkszám: | 3401000HD3000 |
|
|
|
Paraméterek
| CAPACITY | |
| Max.swing over bed | 100mm |
| Max.swing over gap | 1200mm |
| Max.swing over cross slide | 680mm |
| Center distance | 1m 1.5m 2m 3m 4m 5m 6m 8m 10m 12m |
| Width of bed | 600mm |
| HEAD STOCK | |
| Spindle hole | 105mm |
| Spindle taper | ∮120mm 1:20 |
| Spindle speeds | 5.5-730r/min(18steep ） |
| GEAR Box-threads&feeds | |
| Metric threads | 1-240mm (52) |
| Inch threads | TPI 1-14 (26) |
| Moudle threads | 0.5-120mm (53) |
| Diametral threads | DP 1-28 (24) |
| Longitudinal feeds range | 0.1-24.3mm/r |
| Cross feed range | 0.05-12.15mm/r |
| Rapid feed | long/cross 4000mm/min,2000mm/min |
| TOOL-POST | |
| Tool section | 32*32mm |
| CARRIAGE | |
| Cross slide travel | 520mm |
| Compound rest travel | 200mm |
| TAILSTOCK | |
| Sleeve diameter | 120mm |
| Sleeve taper | MT6# |
| Sleeve travel | 240mm |
| MOTOR | |
| Main motor | 11kw |
| Rapid feed motor | 1.1kw |
